Open WebUI

The open-webui module gives you a ChatGPT-style chat interface in your browser, talking to a model running on your own GPU job through vLLM or llama.cpp. Your chats are saved and are still there the next time you start it.

Like Claude Code, it sets up the server for you: load open-webui and it loads the backend, starts it, and connects the interface to it.

The login protects the interface, not the model

Open WebUI has a login, and account creation is turned off, so only you can use the chat interface. But the backend it starts is an ordinary vLLM or llama.cpp server with a placeholder API key, and ports are open within the CRCD environment. Anyone who finds the backend's host and port can query the model directly, bypassing the interface entirely — and bill your allocation. From a login node, with no credentials:

[kimwong@login2 ~]$ curl http://gpu-n76:26204/v1/models
{"models":[{"name":"bartowski/Qwen2.5-7B-Instruct-GGUF:Q4_K_M", ...

The backend's address is printed when the module loads. Stop the job when you are done. See Keeping your endpoint private.

Quick start

srun -M gpu -p rtx6k -n1 -c16 --gres=gpu:1 -t 2:00:00 --pty bash

export OPENWEBUI_BACKEND="vllm"                    # or "llamacpp" -- default is vllm
export VLLM_MODEL="Qwen/Qwen2.5-0.5B-Instruct"     # set one: the vLLM default can't chat
module load open-webui

On the first start you'll see something like:

Open WebUI starting -> http://gpu-n76.crc.pitt.edu:30097  (backend: vllm at http://gpu-n76:55831)
First start for this data directory: admin login 'kimwong@crc.pitt.edu' created, password saved to /xhome/crc/kimwong/.open-webui/admin-credentials (readable only by you).
Startup takes ~30-60s; run 'open-webui-status' to check. The model list fills in once the backend finishes loading - refresh the page if it's empty.

Later starts print Log in as '...' in place of the second line.

Wait until both lines of the status report say READY:

[kimwong@gpu-n76 ~]$ open-webui-status
Open WebUI: READY    - http://gpu-n76.crc.pitt.edu:38805
Backend:    READY    - vllm at http://gpu-n76:42807 (models: Qwen/Qwen2.5-7B-Instruct, ...)
Login:      kimwong@crc.pitt.edu  (password in /xhome/crc/kimwong/.open-webui/admin-credentials)

The interface is ready within a minute; the backend takes longer, especially the first time a model downloads. Until it says READY, the interface loads but its model list is empty.

Note -n1 -c16, not -n16: -n16 gives an interactive shell, and everything started from it, a single core while the job is billed for sixteen.

Opening it in your browser

The module prints a URL on the compute node, but opening it directly won't work: CRCD's clusters are firewalled, so a browser on your laptop can't reach a compute node, even on the VPN. Forward the port through a login node instead — run this on your laptop, using the node and port from the printed URL:

ssh -N -L 8080:gpu-n76:23456 <pittID>@h2p.crc.pitt.edu

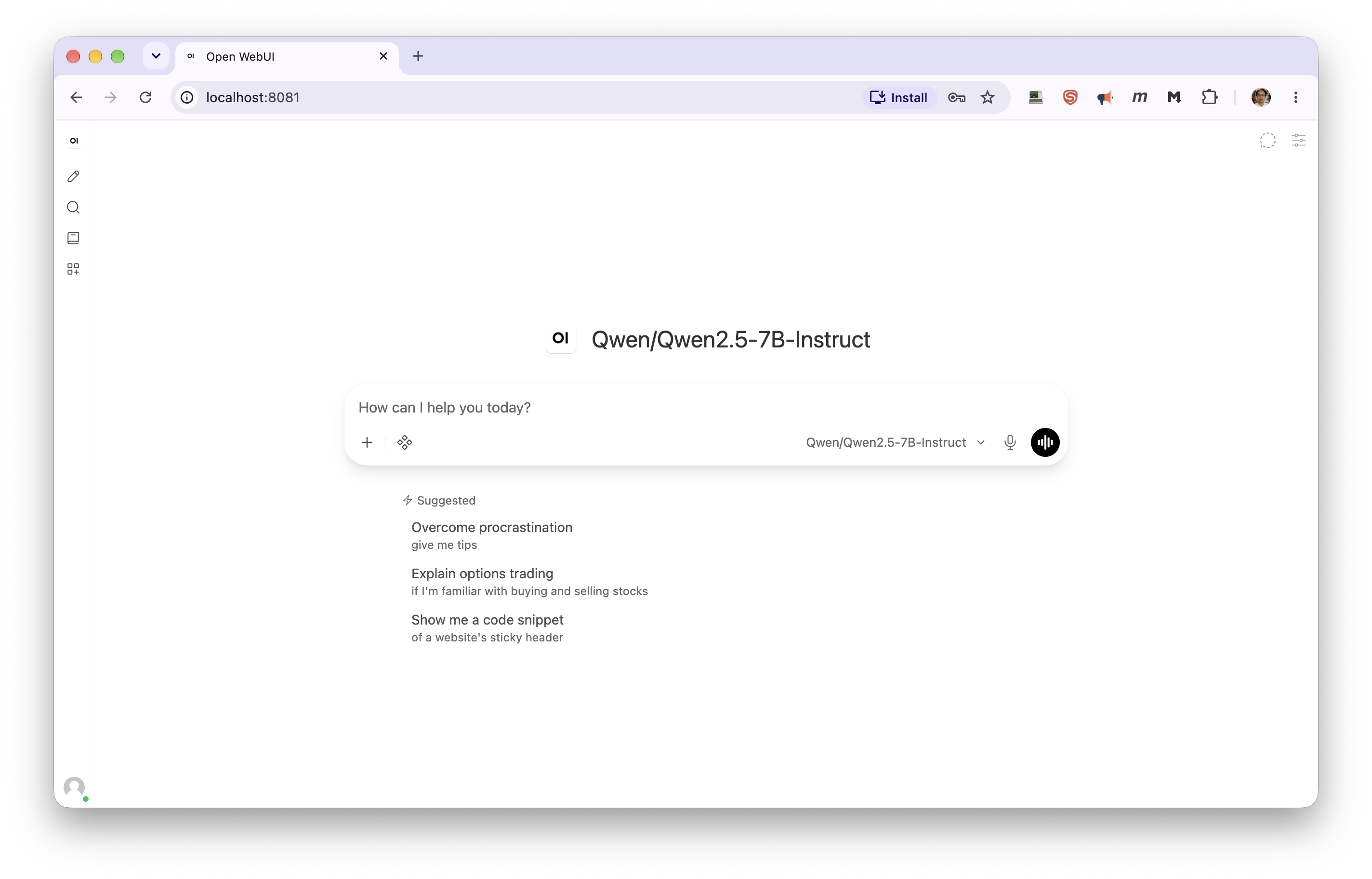

Then open http://localhost:8080/. Leave the ssh command running while you use it. You need to be on Wireless-PittNet or the University VPN. See Your laptop (SSH tunnel) for what each part of the command does.

Use a different local port for each application

Your browser keeps cached pages, logins and background scripts per local port. If you have used localhost:8080 for a different application, it can show you that application's interface, or fail with an error mentioning <!doctype. Pick a fresh port — 8081, 8082 — and check nothing is still holding it with lsof -i :8080. Reusing a port for Open WebUI again later is fine.

Logging in

The first time you use the module, a login is created for you:

cat ~/.open-webui/admin-credentials

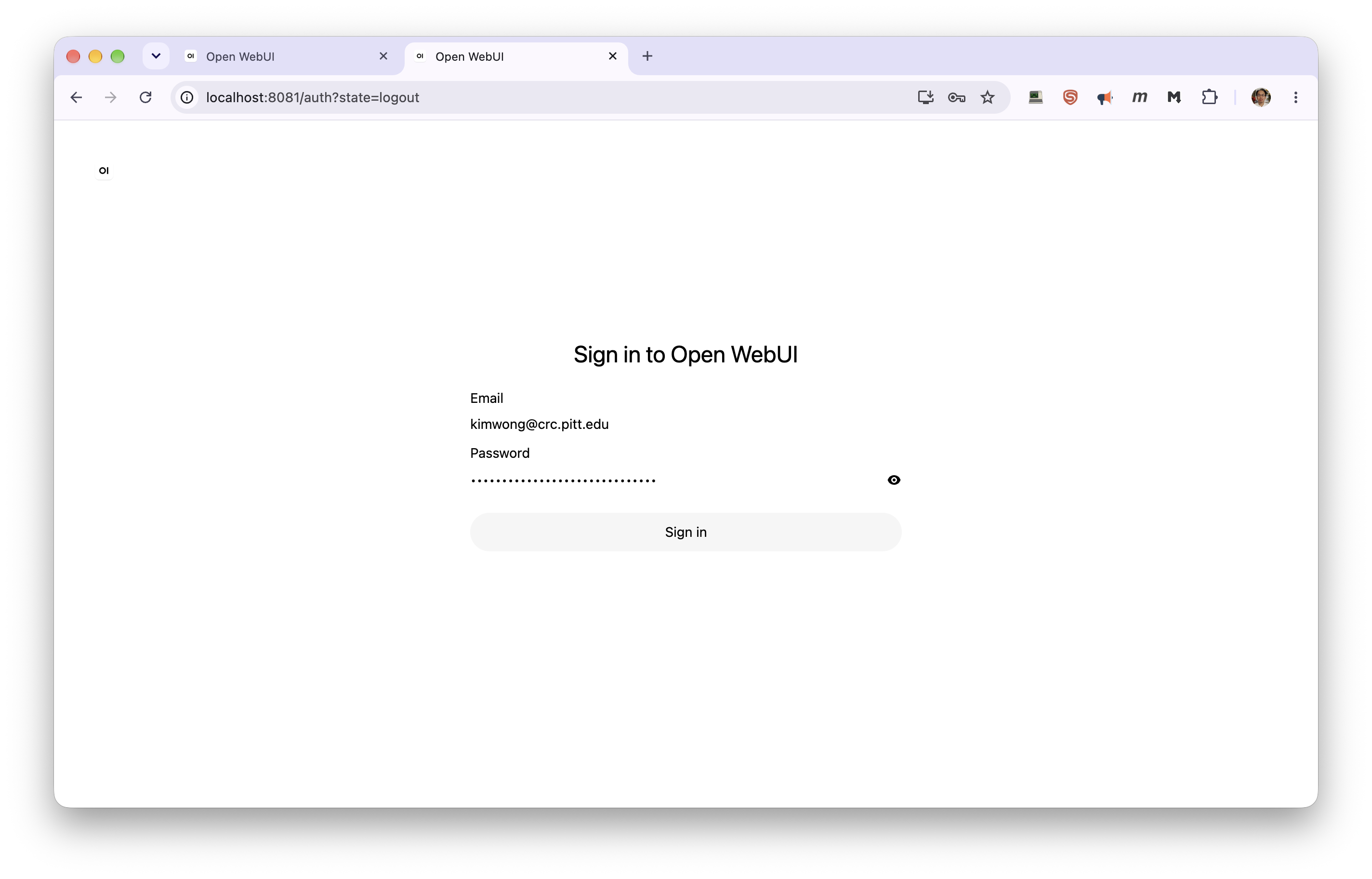

That same login works every time after that, because it's stored in your data directory along with your chats. Nobody else can sign up on your server. Restarting the server signs your browser out — you'll land on the sign-in page — but the account is unchanged:

To choose the login yourself, set these before your very first module load open-webui — they are ignored once the account exists:

export OPENWEBUI_ADMIN_EMAIL="you@pitt.edu"
export OPENWEBUI_ADMIN_PASSWORD="something-long"

If you later change your password inside the web interface, admin-credentials is not updated, so remember the new one.

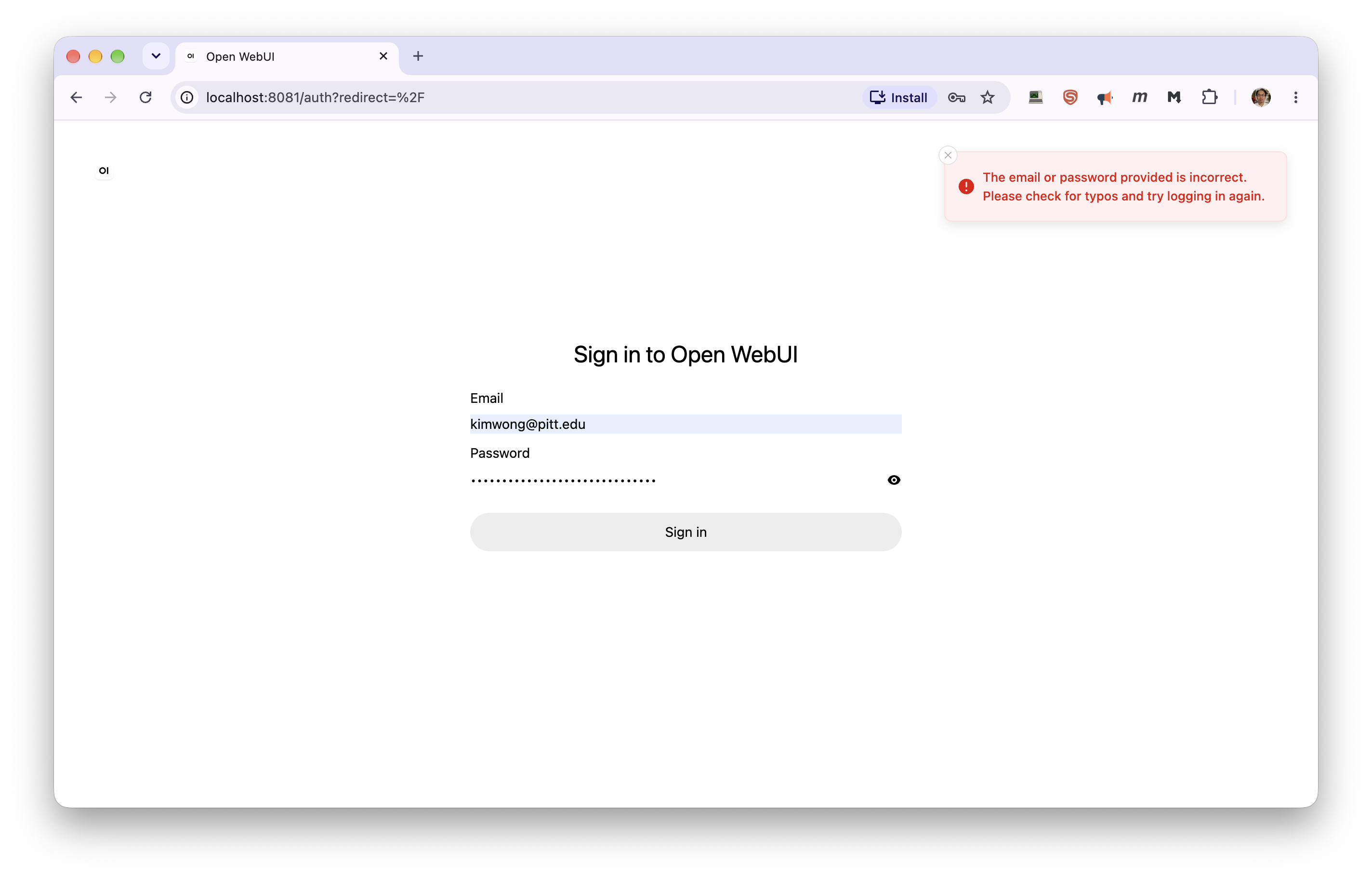

Did not work: editing admin-credentials

The file is a record of the login the module created, not a setting. The account itself lives in Open WebUI's database. Changing the email in the file changes nothing about the account — yet the module repeats the edited value back to you at startup and in open-webui-status, so the wrong email looks correct:

Leave the file as the module wrote it. To use a different email, set OPENWEBUI_ADMIN_EMAIL before a first start — see "Forgot your password" under Troubleshooting for how to start fresh.

Picking a model

The model is chosen by the backend module, using its own variables. Set them before loading:

# vLLM backend
export OPENWEBUI_BACKEND="vllm"
export VLLM_MODEL="Qwen/Qwen2.5-7B-Instruct"
export VLLM_DOWNLOAD_DIR="/vast/<group>/$USER/vllm"

# or llama.cpp backend
export OPENWEBUI_BACKEND="llamacpp"
export LLAMACPP_MODEL="bartowski/Qwen2.5-7B-Instruct-GGUF:Q4_K_M"
export LLAMACPP_DOWNLOAD_DIR="/vast/<group>/$USER/llamacpp"

module load open-webui

Always set a model. The vLLM backend's default, facebook/opt-125m, is a base model with no chat template, so every message to it fails with 400 ... default chat template is no longer allowed. Any instruct or chat model works. Every option on the vLLM and llama.cpp pages still applies, including the ~/.cache/huggingface directory the vLLM backend needs on first use.

Open WebUI shows whatever model the backend serves. If the model dropdown is empty, the backend is probably still loading: wait for Backend: READY in open-webui-status and refresh the page.

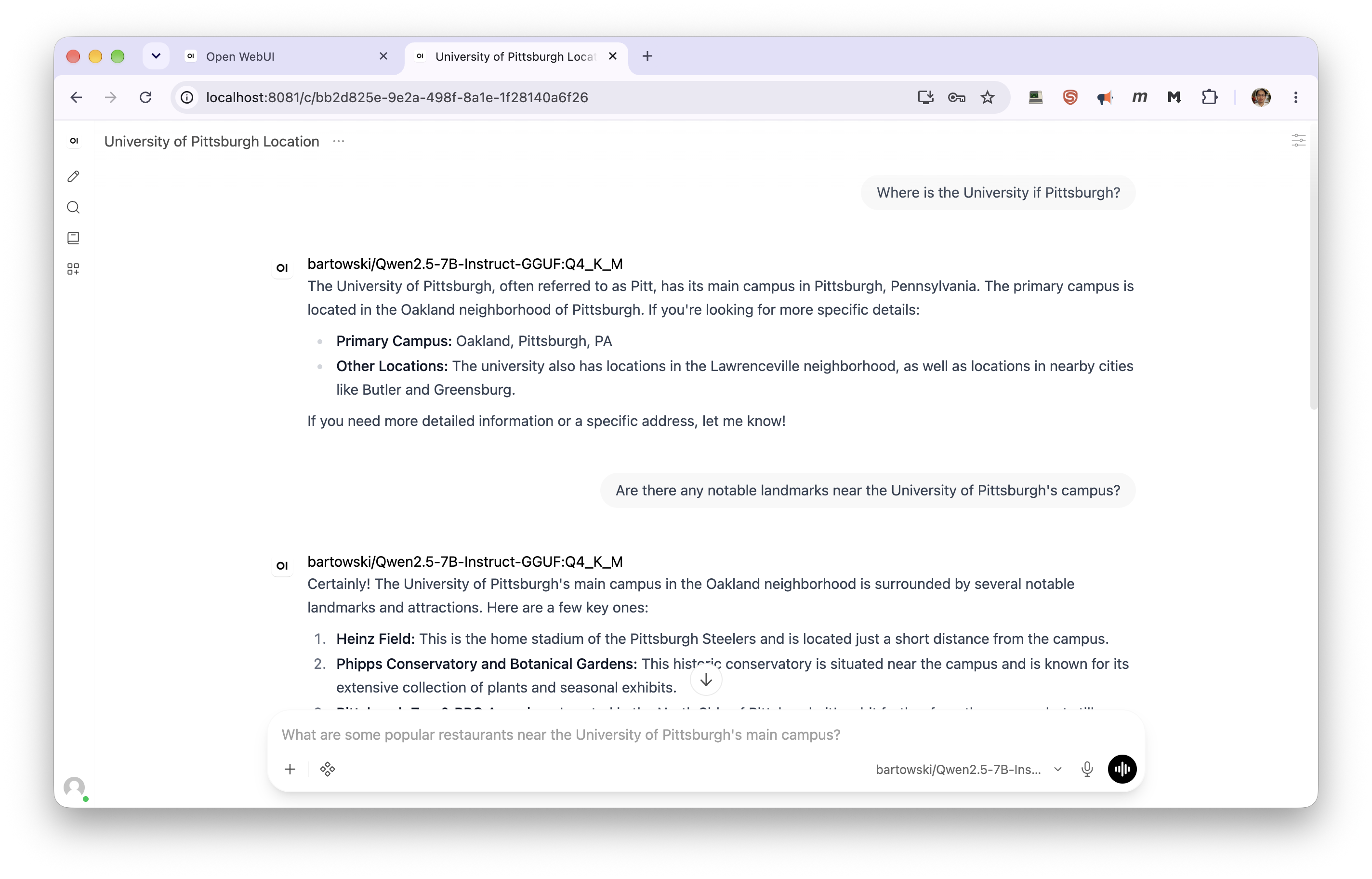

Once a model is listed, chat as you would anywhere else. Open WebUI titles each conversation from its first exchange and suggests follow-up questions:

Where your data lives

Everything — accounts, chats, uploaded files, the settings file — is in:

~/.open-webui/

To keep it somewhere else, set this before loading, and keep using the same value in future jobs:

export OPENWEBUI_DATA_DIR="/path/to/your/project/open-webui"

Uploaded files count against wherever this lives, and your home directory has a 75 GB quota. If you move it, check the next start for a database is locked error: the data directory needs a filesystem with proper file locking.

Only one Open WebUI server can use a data directory at a time. A second job started against the same directory refuses to start and tells you which job holds it.

Changing Open WebUI settings

Settings you change in the Admin Panel last only until the server stops. The module has to do this, because the backend's address changes every job. Your chats, uploads, workspace models and prompts, and personal preferences are kept.

To make admin settings stick, put them in a settings file in your data directory, one KEY=VALUE per line, using Open WebUI's environment variable names:

cat > ~/.open-webui/open-webui.env <<'EOF'
WEBUI_NAME="My Cluster Chat"
ENABLE_TITLE_GENERATION=False
DEFAULT_MODEL_PARAMS={"temperature":0.7}
EOF

It's picked up on the next module load. To use a file elsewhere, set OPENWEBUI_ENV_FILE. The backend connection, the port, the data location, and sign-up being off are always controlled by the module and can't be overridden.

Tool calling (built-in tools)

By default the module runs Open WebUI's tool calling in Legacy mode. Chat, web search and document upload work with any model, but Open WebUI's built-in agent tools — memory, notes, knowledge-base exploration — are off. Those need Native mode, which only works when both of these hold:

1. The backend was started with tool calling on, using the parser that matches your model. For vLLM:

   export VLLM_EXTRA_ARGS="--enable-auto-tool-choice --tool-call-parser hermes"


   hermes suits Qwen2.5-Instruct and Qwen3; use llama3_json for Llama 3.1. Not Qwen2.5-Coder — it has no working vLLM parser, and hermes fails silently on it. The full parser table is on the Claude Code page.

2. The model's chat template accepts several tool calls in one turn. Llama 3.1-style and Mistral models don't, and fail with "This model only supports single tool-calls at once!" as soon as the model calls two tools at once.

If both hold, switch to Native in ~/.open-webui/open-webui.env:

DEFAULT_MODEL_PARAMS='{"function_calling":"native"}'

DEFAULT_MODEL_PARAMS is a single JSON value, so if you also set other defaults there, such as temperature, put them in the same JSON object.

Configuration

Set these before module load open-webui.

Variable	Purpose	Default
OPENWEBUI_BACKEND	vllm or llamacpp	vllm
OPENWEBUI_DATA_DIR	Where chats, accounts, uploads and settings are kept	~/.open-webui
OPENWEBUI_ADMIN_EMAIL	Login email, used on first start only	$USER@ the node's domain
OPENWEBUI_ADMIN_PASSWORD	Login password, used on first start only	random, saved to admin-credentials
OPENWEBUI_ENV_FILE	Extra Open WebUI settings file	<data dir>/open-webui.env, if present
OPENWEBUI_OFFLINE	0 lets Open WebUI use the internet for downloads and update checks	offline
OPENWEBUI_PUBLIC_HOST	Hostname shown in the printed URL	the node's full hostname
OPENWEBUI_BACKEND_API_KEY	API key sent to the backend	placeholder local-vllm / local-llamacpp
OPENWEBUI_EXCLUDE_PORTS	Extra ports to avoid, space separated	none

The module also accepts OPENWEBUI_IMAGE, OPENWEBUI_CONTAINER_RUNTIME, OPENWEBUI_CONTAINER_BINDS, OPENWEBUI_CONTAINER_ARGS and OPENWEBUI_CONTAINER_WRITABLE_FLAG for working around container problems; you are unlikely to need them.

Checking and stopping

open-webui-status          # interface and backend readiness, URL, login email
open-webui-stop            # stop the interface only; the backend keeps running
module unload open-webui   # stop the interface, and the backend if open-webui started it

module purge stops both:

vLLM server stopped.
Open WebUI server stopped.

The backend's own tools work too: vllm-status / vllm-stop, or llamacpp-status / llamacpp-stop. Everything stops when your SLURM job ends; your chats are already saved.

Troubleshooting

Symptom	Cause	What to do
OPENWEBUI_BACKEND must be 'vllm' or 'llamacpp'	Typo, or a leftover value	unset OPENWEBUI_BACKEND
The vllm/llamacpp backend did not report a base URL	The backend failed to start	Scroll up for its own error, usually the SLURM or GPU check
... is in use by Open WebUI in SLURM job NNN	Another of your jobs uses the same data directory	scancel -M gpu NNN, or set a different OPENWEBUI_DATA_DIR
The browser can't connect	Opening the printed URL directly, the tunnel isn't running, or the interface is still starting	Use the SSH tunnel and localhost; check the ssh -L is still running; wait for Open WebUI: READY
No models in the dropdown	Backend still downloading or loading	Wait for Backend: READY, then refresh
This model only supports single tool-calls at once!	Native tool calling with a single-call model	See below
400 As of transformers v4.44, default chat template is no longer allowed	The model has no chat template — usually the vLLM default, facebook/opt-125m	Set VLLM_MODEL to an instruct model and reload the module
An admin-panel setting reverted	Expected — admin settings last one job	Put it in open-webui.env
Document upload or RAG errors	Open WebUI is offline by default and lacks an embedding model	Try OPENWEBUI_OFFLINE=0; CRCD GPU nodes can reach the internet
database is locked	The data directory's filesystem lacks proper locking	Move it with OPENWEBUI_DATA_DIR, for example back under your home directory
Anything else		The full server log is at $OPENWEBUI_LOGFILE

The single-tool-call error. The module defaults to Legacy mode, which avoids this. Check whether DEFAULT_MODEL_PARAMS in open-webui.env sets "native", and whether the model's Function Calling setting under Workspace > Models > (edit) > Advanced Params was set to Native by hand — a per-model or per-chat setting wins over the default. Then start a new chat: a chat that already contains a multi-tool-call turn keeps failing, because that turn is sent back to the model with every message.

Forgot your password after changing it in the interface: there's no self-service reset. To start completely fresh, stop the server and move the database aside. This loses your chats:

mv ~/.open-webui/webui.db ~/.open-webui/webui.db.old
rm -f ~/.open-webui/admin-credentials

The next module load creates a new login.
