Chat UI

The chat-ui module gives you a HuggingChat-style chat interface in your browser, talking to a model running on your own GPU job through vLLM or llama.cpp. Your chats are saved and are still there the next time you start it, even on a different node.

Like Open WebUI, it sets up the server for you: load chat-ui and it loads the backend, starts it, and connects the interface to it. Chat UI is the lighter of the two; Open WebUI adds document upload, web search, and agent tools.

The login protects the interface, not the model

Chat UI asks for a password, so only you can use the chat interface. But the backend it starts is an ordinary vLLM or llama.cpp server with a placeholder API key, and ports are open within the CRCD environment. Anyone who finds the backend's host and port can query the model directly, bypassing the interface entirely — and bill your allocation. Stop the job when you are done. See Keeping your endpoint private.

Quick start

srun -M gpu -p rtx6k -n1 -c16 --gres=gpu:1 -t 2:00:00 --pty bash

export CHATUI_BACKEND="vllm"                        # or "llamacpp" -- default is vllm
export VLLM_MODEL="Qwen/Qwen2.5-0.5B-Instruct"      # small, and able to chat
module load chat-ui

On the first start you'll see something like:

chat-ui starting -> http://gpu-n76.crc.pitt.edu:39417  (backend: vllm at http://gpu-n76:54667)
First start for this data directory: browser login 'kimwong' created, password saved to /xhome/crc/kimwong/.chat-ui/login-credentials (readable only by you).
chat-ui starts once the backend has loaded its model; run 'chat-ui-status' to check progress.

Later starts print Browser login: 'kimwong' (password in ...) in place of the second line. Wait until both lines of the status report say READY:

[kimwong@gpu-n76 ~]$ chat-ui-status
chat-ui:    READY    - http://gpu-n76.crc.pitt.edu:39417
Backend:    READY    - vllm at http://gpu-n76:54667 (models: Qwen/Qwen2.5-0.5B-Instruct, ...)
Login:      kimwong  (password in /xhome/crc/kimwong/.chat-ui/login-credentials)

Did not work: the vLLM backend's default model

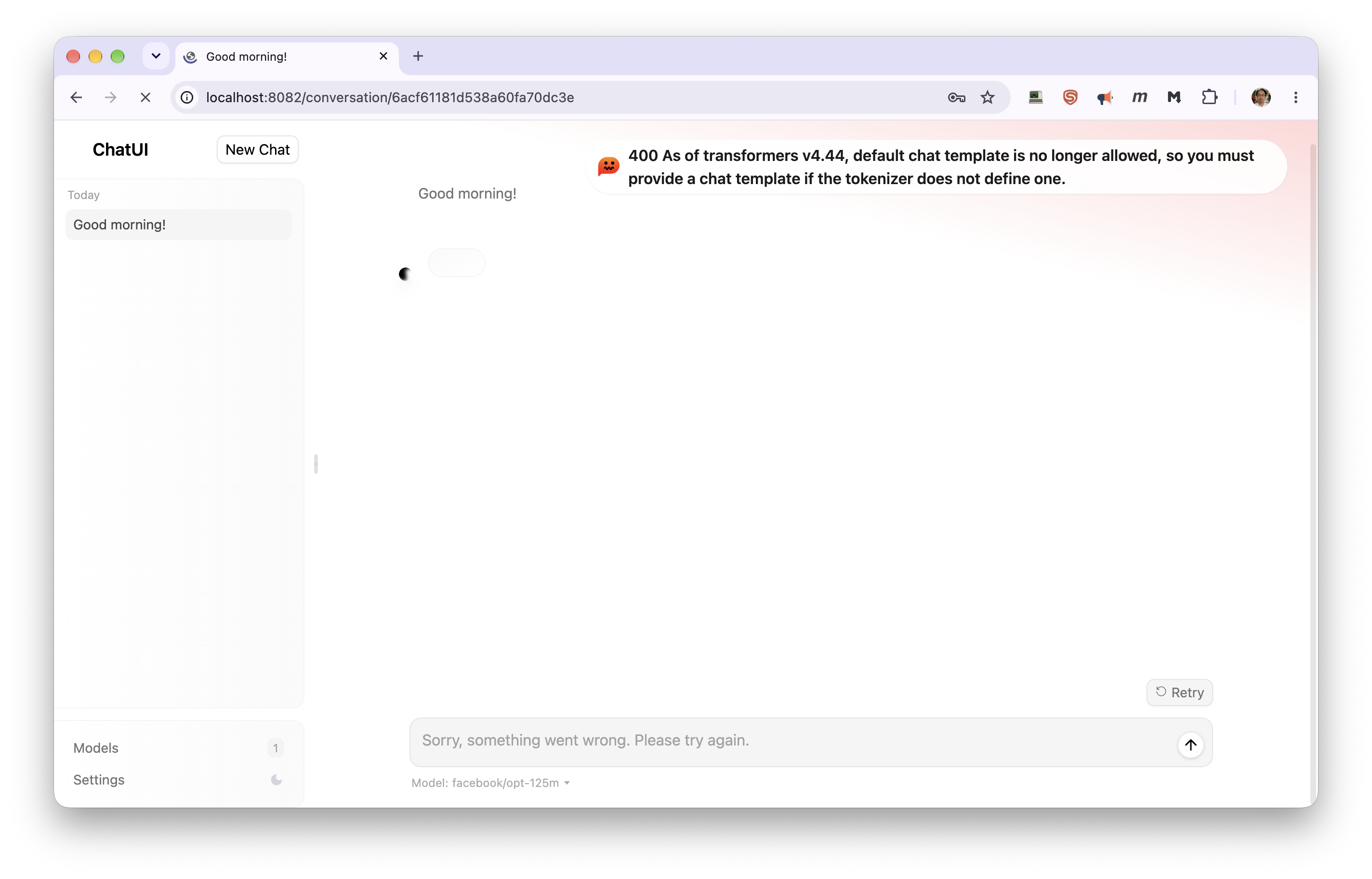

Set VLLM_MODEL, even for a first test. With nothing set, the vLLM backend loads facebook/opt-125m, a base model with no chat template, and every message fails:

400 As of transformers v4.44, default chat template is no longer allowed, so you must
provide a chat template if the tokenizer does not define one.

Any instruct or chat model works. Qwen/Qwen2.5-0.5B-Instruct is small enough to load in seconds.

Note -n1 -c16, not -n16: -n16 gives an interactive shell, and everything started from it, a single core while the job is billed for sixteen.

Chat UI waits for the backend to finish loading its model before it starts, so for a big model the first few minutes of chat-ui-status say waiting for the ... backend. That's normal. If you open the page during that time you'll see a short "still starting" message; reload it once chat-ui-status says READY.

chat-ui-status doesn't notice a crashed backend

If the backend fails to start, chat-ui-status keeps reporting it as STARTING indefinitely. If the wait seems too long, ask the backend directly:

[kimwong@gpu-n78 ~]$ vllm-status
vLLM process is not running - it may have crashed. Check the log below:

The log's last lines name the cause. One you may meet is Free memory on device ... is less than desired GPU memory utilization, which means the GPU was already in use when the backend started — see the vLLM troubleshooting list.

Opening it in your browser

The module prints a URL on the compute node, but opening it directly won't work: CRCD's clusters are firewalled, so a browser on your laptop can't reach a compute node, even on the VPN. Forward the port through a login node instead — run this on your laptop, using the node and port from the printed URL:

ssh -N -L 8080:gpu-n76:23214 <pittID>@h2p.crc.pitt.edu

Then open http://localhost:8080/. Leave the ssh command running while you use it. You need to be on Wireless-PittNet or the University VPN. See Your laptop (SSH tunnel) for what each part of the command does.

Use a different local port for each application

Your browser keeps cached pages, logins and background scripts per local port. If you have used localhost:8080 for another server, it can show you that server's interface, or fail with an error mentioning <!doctype. Pick a fresh port — 8081, 8082 — and check nothing is still holding it with lsof -i :8080.

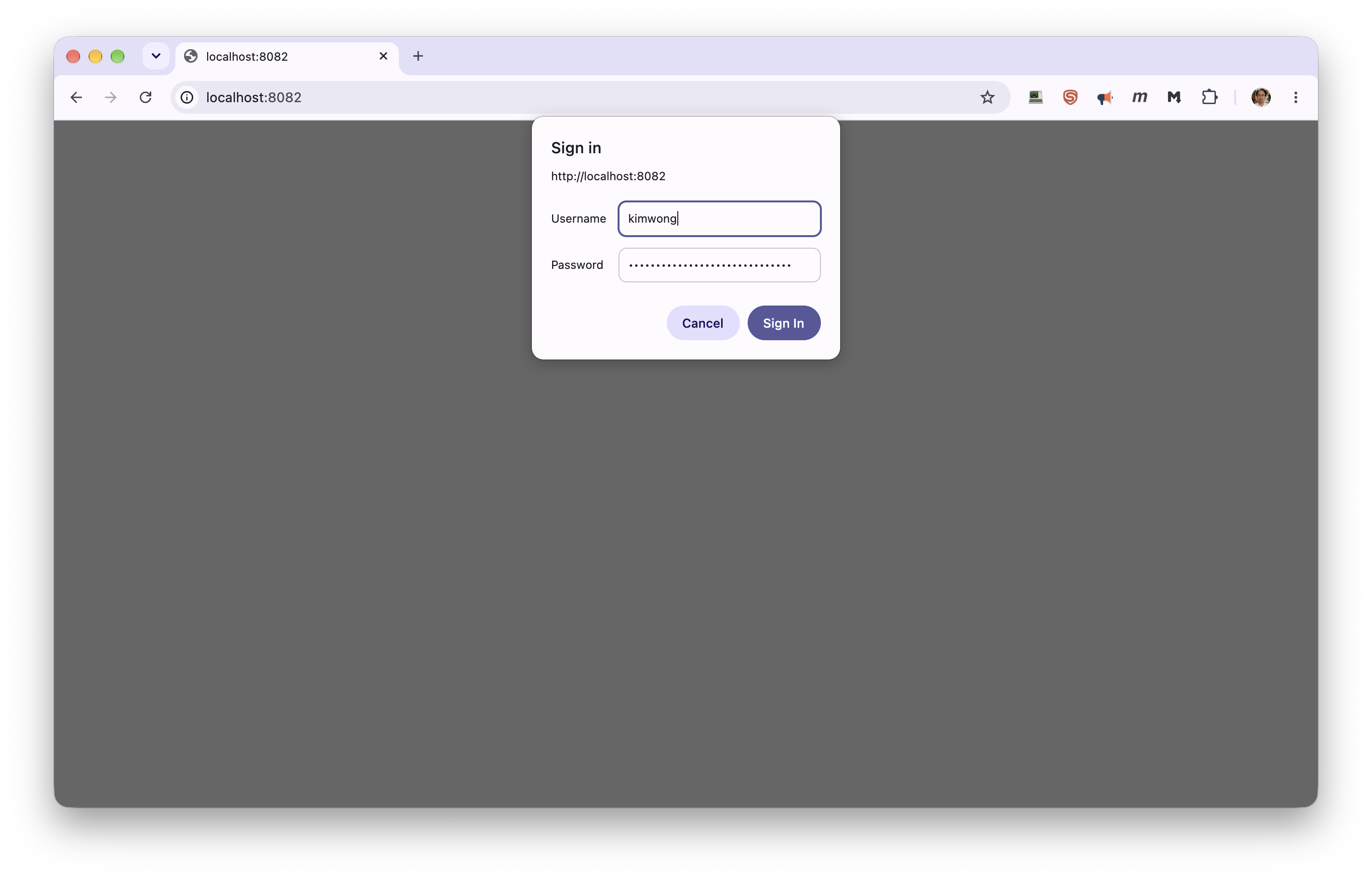

Your browser asks for a username and password in its own sign-in prompt, rather than a page:

They're in your credentials file:

cat ~/.chat-ui/login-credentials

Your browser can remember them, though it may ask again next time. The same login works on later jobs, on any node, as long as you use the same data directory.

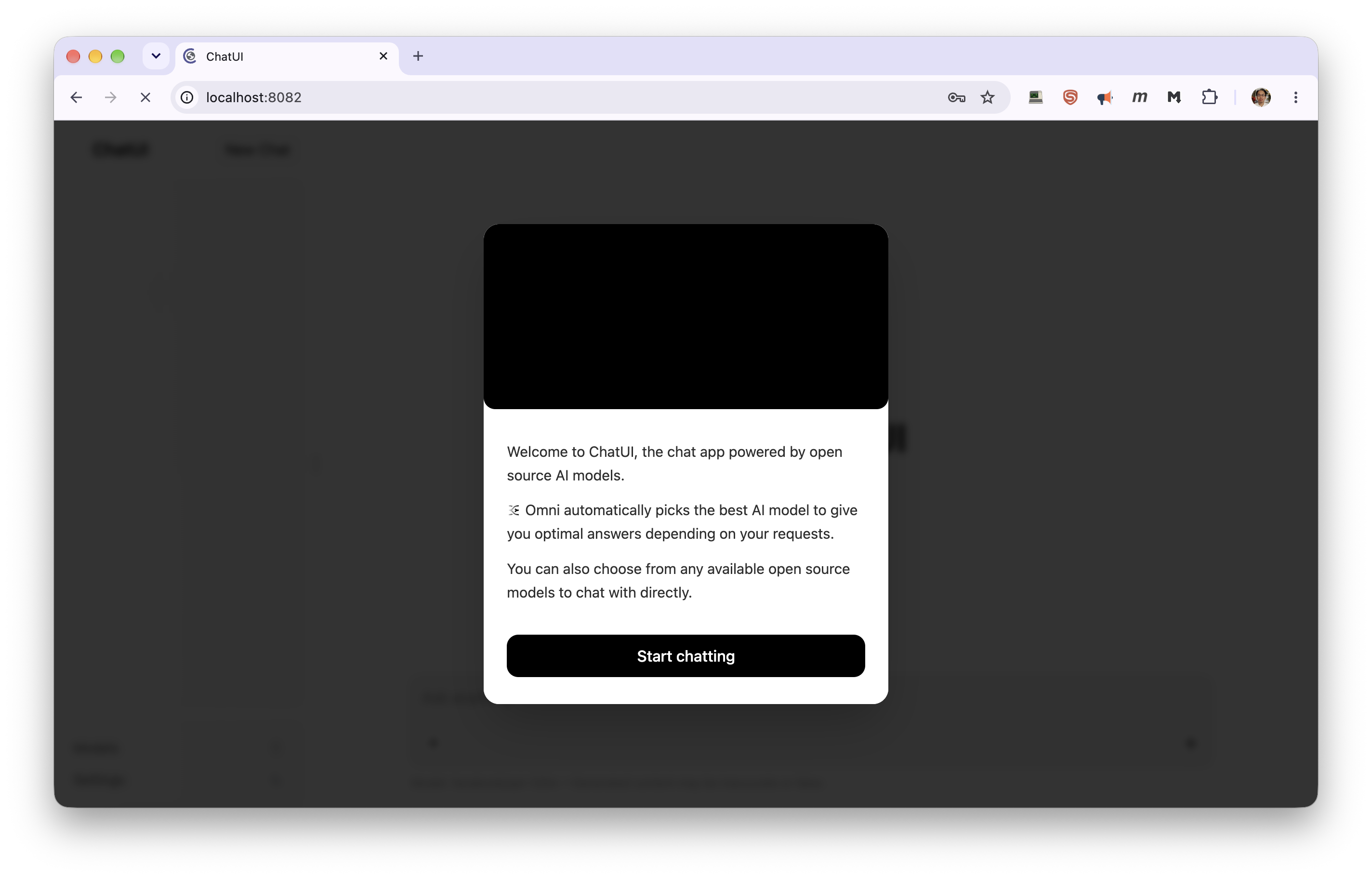

The first time, Chat UI opens with a welcome screen. It describes HuggingChat's "Omni" model routing, which doesn't apply here — your backend serves one model. Choose Start chatting:

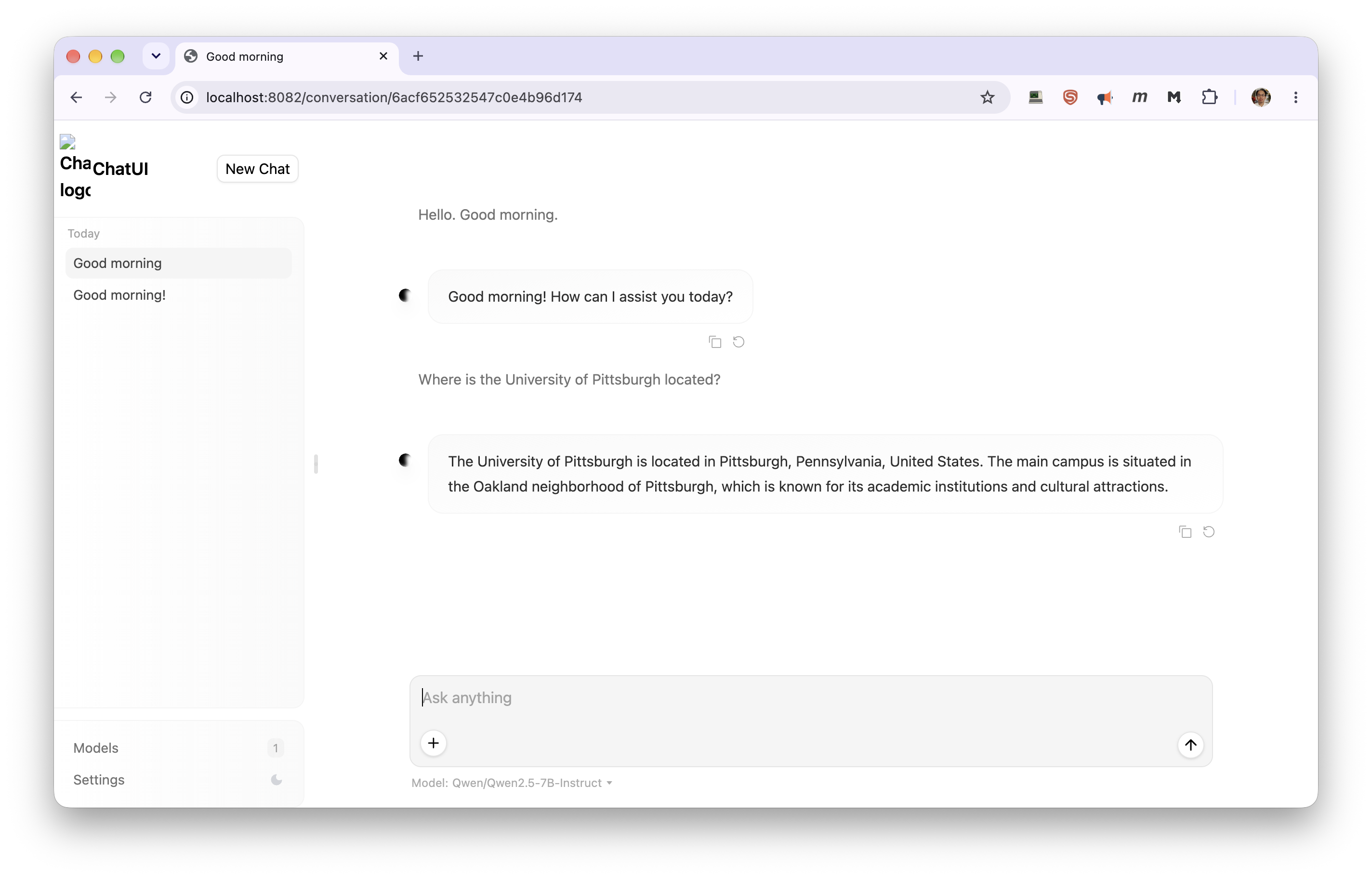

Then chat as you would anywhere else — here with the vLLM backend serving Qwen/Qwen2.5-7B-Instruct:

Picking a model

The model is chosen by the backend module, using its own variables. Set them before loading:

# vLLM backend
export CHATUI_BACKEND="vllm"
export VLLM_MODEL="Qwen/Qwen2.5-7B-Instruct"
export VLLM_DOWNLOAD_DIR="/vast/<group>/$USER/vllm"

# or llama.cpp backend
export CHATUI_BACKEND="llamacpp"
export LLAMACPP_MODEL="bartowski/Qwen2.5-7B-Instruct-GGUF:Q4_K_M"
export LLAMACPP_DOWNLOAD_DIR="/vast/<group>/$USER/llamacpp"

module load chat-ui

Always set a model. The vLLM backend's default, facebook/opt-125m, has no chat template and can't chat at all; see the warning in the quick start. Every option on the vLLM and llama.cpp pages still applies, including the ~/.cache/huggingface directory the vLLM backend needs on first use.

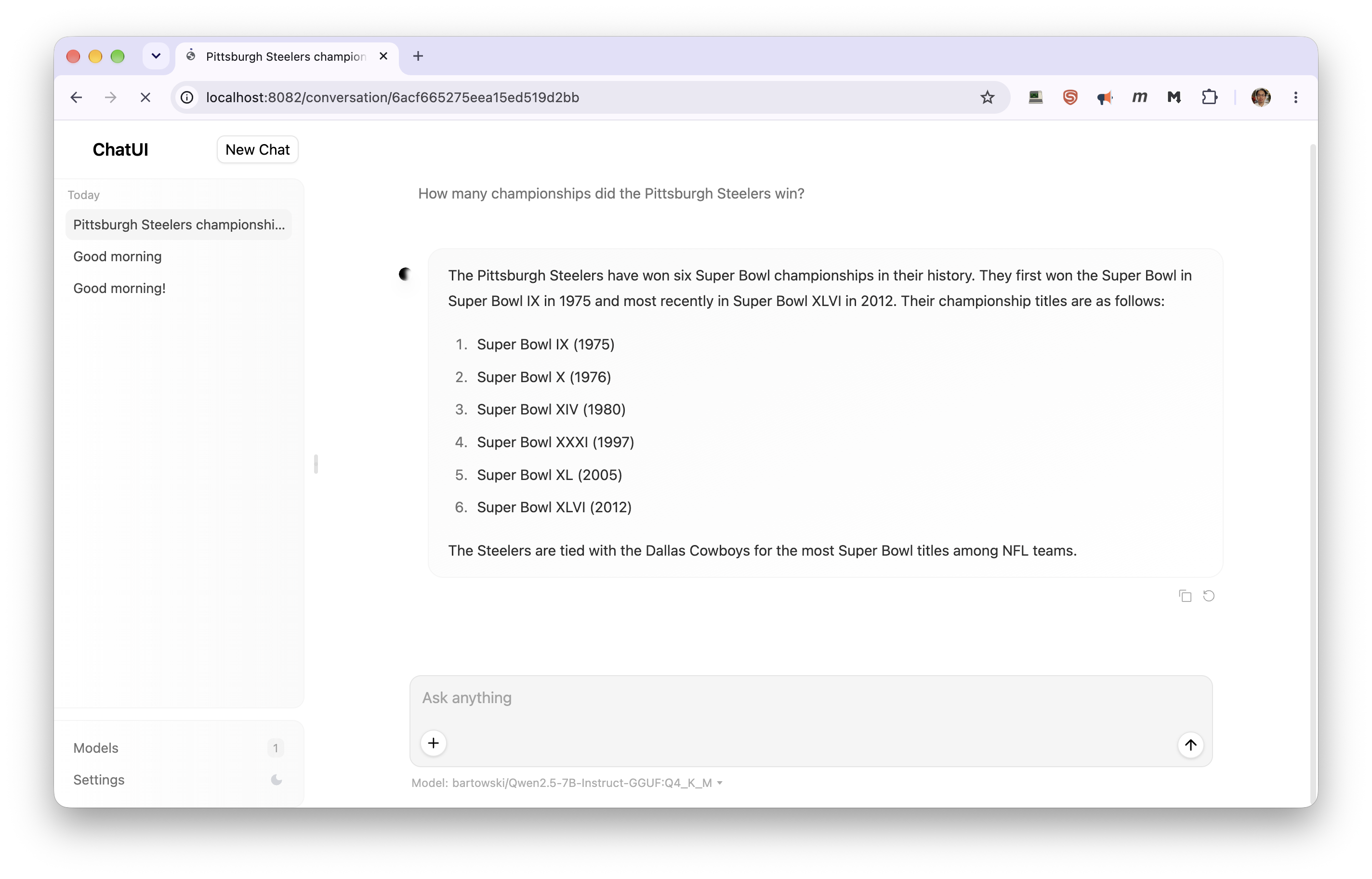

You can switch backends between jobs, or within one by reloading the module. Your conversations stay, since they live in the data directory rather than with the backend — here the sidebar still holds the chats from the vLLM session above, now answered by llama.cpp:

Where your data lives

Everything — chat history, the login file, your settings file — is in:

~/.chat-ui/

To keep it somewhere else, set this before loading, and keep using the same value in future jobs:

export CHATUI_DATA_DIR="/path/to/your/project/chat-ui"

Chat history is stored in a MongoDB database inside that directory. If you move it and chat-ui-status reports DOWN with a mention of MongoDB, the new filesystem is one MongoDB has trouble with; move it back.

Only one Chat UI server can use a data directory at a time. A second job started against the same directory refuses to start and tells you which job holds it.

Changing your login

Edit the username= and password= lines in ~/.chat-ui/login-credentials; the change applies the next time you load the module.

Don't change the email= line

It's the internal account your chats are stored under. Changing it makes your past chats disappear from view.

To choose the login before your very first start instead:

export CHATUI_LOGIN_USER="me"
export CHATUI_LOGIN_PASSWORD="something-long"

Changing Chat UI settings

Put Chat UI settings in a file in your data directory, one KEY=VALUE per line, using the variable names from Chat UI's .env file. Quote any value containing spaces or JSON with single quotes:

cat > ~/.chat-ui/chat-ui.env <<'EOF'
PUBLIC_APP_NAME="My Cluster Chat"
LLM_SUMMARIZATION=false
MODELS='[{"id":"Qwen/Qwen2.5-7B-Instruct","name":"Qwen 2.5 7B","parameters":{"temperature":0.7}}]'
EOF

It's picked up on the next module load. To use a file elsewhere, set CHATUI_ENV_FILE.

MODELS only overrides how models are shown and prompted; the list of models itself always comes from your backend. Each entry's id must match a model name the backend serves — chat-ui-status lists them. The supported override fields are in Chat UI's configuration documentation. The backend connection, the database, and the login are always controlled by the module.

Configuration

Set these before module load chat-ui.

Variable	Purpose	Default
CHATUI_BACKEND	vllm or llamacpp	vllm
CHATUI_DATA_DIR	Where chats, the login file and settings are kept	~/.chat-ui
CHATUI_LOGIN_USER	Browser login username, first start only	$USER
CHATUI_LOGIN_PASSWORD	Browser login password, first start only	random, saved to login-credentials
CHATUI_ENV_FILE	Extra Chat UI settings file	<data dir>/chat-ui.env, if present
CHATUI_PUBLIC_HOST	Hostname shown in the printed URL	the node's full hostname
CHATUI_BACKEND_API_KEY	API key sent to the backend	placeholder local-vllm / local-llamacpp
CHATUI_EXCLUDE_PORTS	Extra ports to avoid, space separated	none

The module also accepts CHATUI_IMAGE, CHATUI_CONTAINER_RUNTIME, CHATUI_CONTAINER_BINDS, CHATUI_CONTAINER_ARGS and CHATUI_CONTAINER_WRITABLE_FLAG for working around container problems; you are unlikely to need them.

Checking and stopping

chat-ui-status          # readiness, startup progress, URL, login
chat-ui-stop            # stop the interface only; the backend keeps running
module unload chat-ui   # stop the interface, and the backend if chat-ui started it

[kimwong@gpu-n76 ~]$ chat-ui-stop
Stopped chat-ui server (PID 2014890).
[kimwong@gpu-n76 ~]$ module unload chat-ui
vLLM server stopped.
chat-ui server stopped.

The backend's own tools work too: vllm-status / vllm-stop, or llamacpp-status / llamacpp-stop. Everything stops when your SLURM job ends; your chats are already saved.

Troubleshooting

Symptom	Cause	What to do
CHATUI_BACKEND must be 'vllm' or 'llamacpp'	Typo, or a leftover value	unset CHATUI_BACKEND
The vllm/llamacpp backend did not report a base URL	The backend failed to start	Scroll up for its own error, usually the SLURM or GPU check
... is in use by chat-ui in SLURM job NNN	Another of your jobs uses the same data directory	scancel -M gpu NNN, or set a different CHATUI_DATA_DIR
400 As of transformers v4.44, default chat template is no longer allowed	The model has no chat template — usually the vLLM default, facebook/opt-125m	Set VLLM_MODEL to an instruct model and reload the module
Stuck on waiting for the ... backend	The model is still loading — or the backend has crashed, which chat-ui-status does not detect	Run vllm-status / llamacpp-status. If it says the process is not running, read the log it prints, fix the cause, and reload the module
The browser keeps asking for the password	It doesn't match login-credentials	If you edited that file, module unload chat-ui && module load chat-ui
chat-ui is not reachable yet (still starting?)	Still starting	Wait for READY and reload the page
The browser can't connect	Opening the printed URL directly, the tunnel isn't running, or the interface is still starting	Use the SSH tunnel and localhost; check the ssh -L is still running; wait for READY
Past chats are gone	Different data directory, or the email= line changed	Use the same CHATUI_DATA_DIR, and restore the original email=
DOWN, mentioning MongoDB	The data directory's filesystem doesn't suit MongoDB	Check the mongod.log path chat-ui-status prints; move the directory with CHATUI_DATA_DIR
A WARNING ... internal port line in chat-ui-status	Your Chat UI is reachable without the login	Stop it with chat-ui-stop and contact CRCD
Anything else		The full server log is at $CHATUI_LOGFILE
